Name: Video Over FTP CAT5E Network Cable Outdoor With Messenger In Black Jacket
Brand: hellosignal
Price: 1 USD

Brand Name : hellosignal

Model Number : CAT5E Outdoor Cable with Messenger

Certification : UL, ETL, CE,CPR, RoHS

Place of Origin : Hangzhou, China

Payment Terms : T/T, L/C, D/P

Supply Ability : 30KM month

Delivery Time : Normally 25 working days

Packaging Details : pull box, wooden spool, carton, pallet

Number of conductors : 4

Type : CAT5/CAT5e/CAT6/CAT7

Jacket : PVC

Color : Blue/Red/Black/Grey

Conductor : Bare Copper

Application : Telecommunication,Networking,Telecom/CATV,broadband connection,Telecommunication/CCTV/Computer

Contact Now

Video over FTP Outdoor Cable

Construction Parameters:
Description	4 Pair Cat5E Type + 2C-0.75 With Messenger Construction
Video and Control Pairs
Inner Conductor	0.0196"/0.50mm/24AWG Bare Copper
Stranding	Solid
Insulation Material	Polyethylene 0.008"/0.2mm
Number of Conductors	8(4 Pair)
Drain wire	TCCS
Shield	Aluminum/PET Foil
Power Conductors
Inner Conductor	Copper Clad Aluminum
Stranding	31×0.25mm
Insulation Material	PVC 0.008"/0.25mm
Number of Conductors	2
Shield	None
Messenger	1.2mm Zinned Steel
Electrical Characteristics:
Video and Control Pairs
Temperature Rating	-20℃ to 60℃
Operating Voltage	300 V RMS
Max.Capacitance @1 KHz	45.9 pf/100m
Nom.Impedance	100 Ohms
Nom.Velocity of Propagation	66%
DC Resistance per Cond. @ 20℃	26 Ohms/1M' Nom
Power Conductors
Temperature Rating	-20℃ to 60℃
Operating Voltage	300 V RMS
Max.Capacitance @1 KHz	NA
DC Resistance per Cond. @ 20℃
Insulation Colors	Black, Red
Overall Construction
Jacket Type	UV-PE
Jacket Color	Siamese-Black
Nom.O.D.	5.4mm × 5.0mm
Mechanical Properties
Max.Recommended Pull Tension	15 KGS
Min. Bend Radius(Install)	86mm
Order Informations:
Marking	HELLOSIGNAL Video Over UTP 4 Pair FTP Cat5E Type + 2C-0.75MM2 M

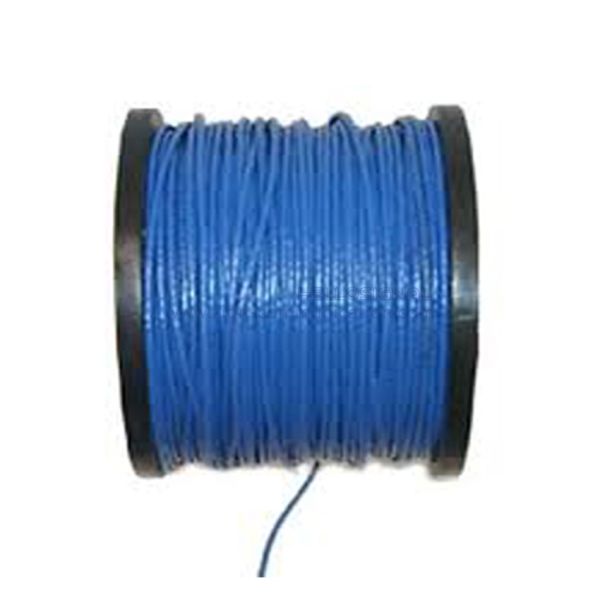

Inner Package	500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
Delivery time	Normally 20-25 days after received the deposit.
Brand	HELLOSIGNAL® OR OEM

Packing
